RECESSED 2
2" Recessed Linear Lighting
The Recessed 2 is a 2-inch wide recessed lighting fixture with high-quality extruded aluminum housing, available in lengths up to 12 feet with custom length options. It offers even, pixel-free illumination with a snap-on DR acrylic lens and various trim and LED options, including RGBW and tunable white, perfect for environments like corporate offices and retail spaces.

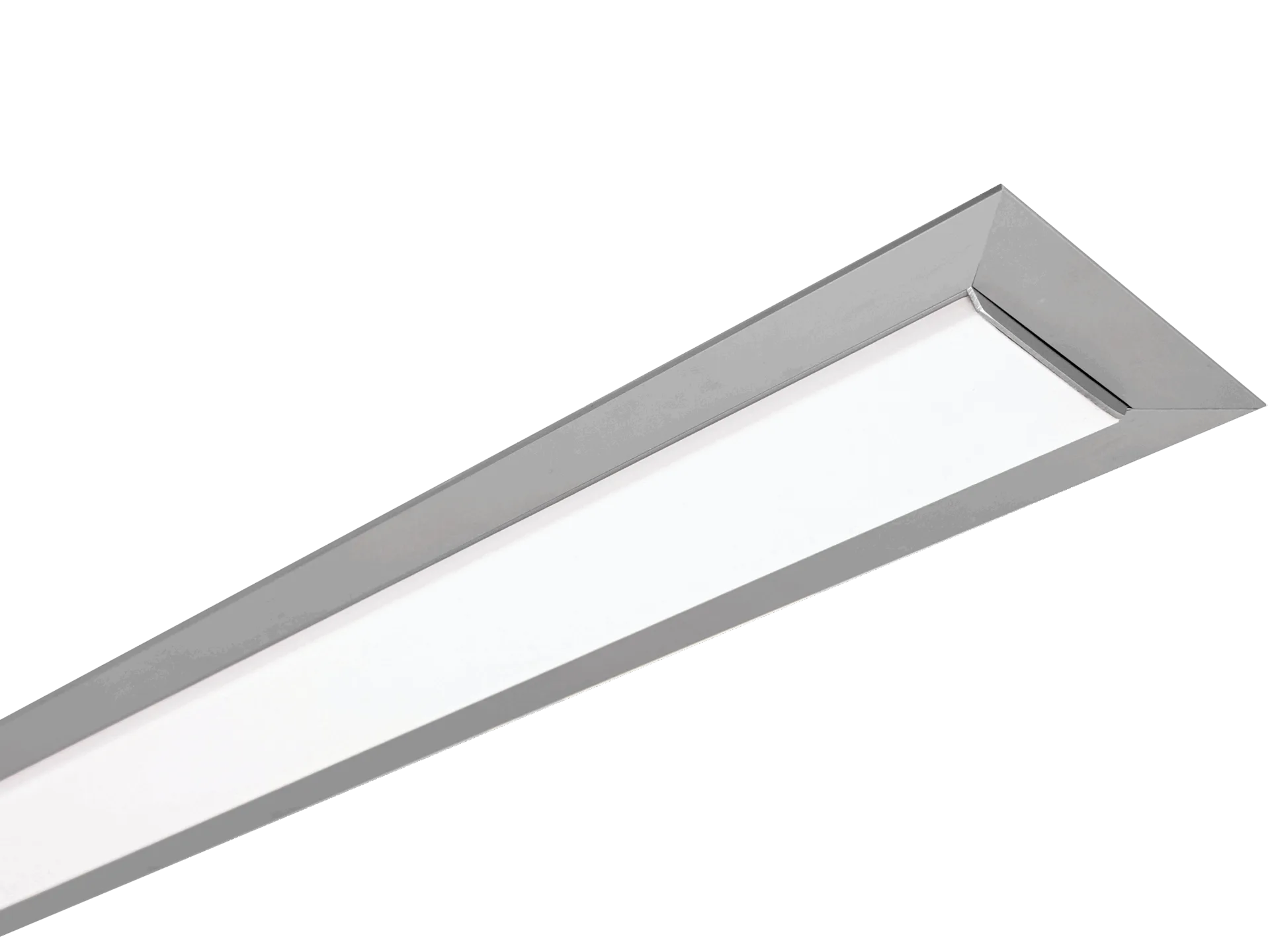

FL

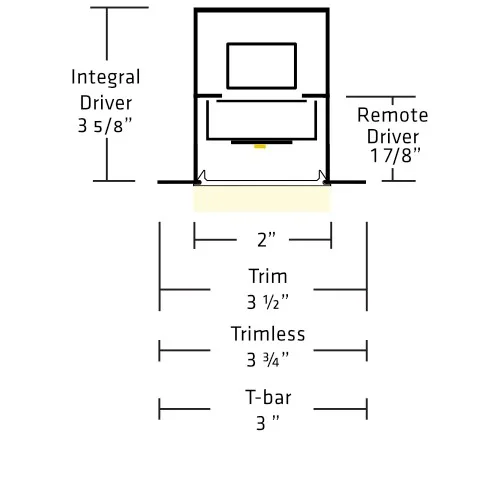

RC2-FL
FRL
RC2-FRL

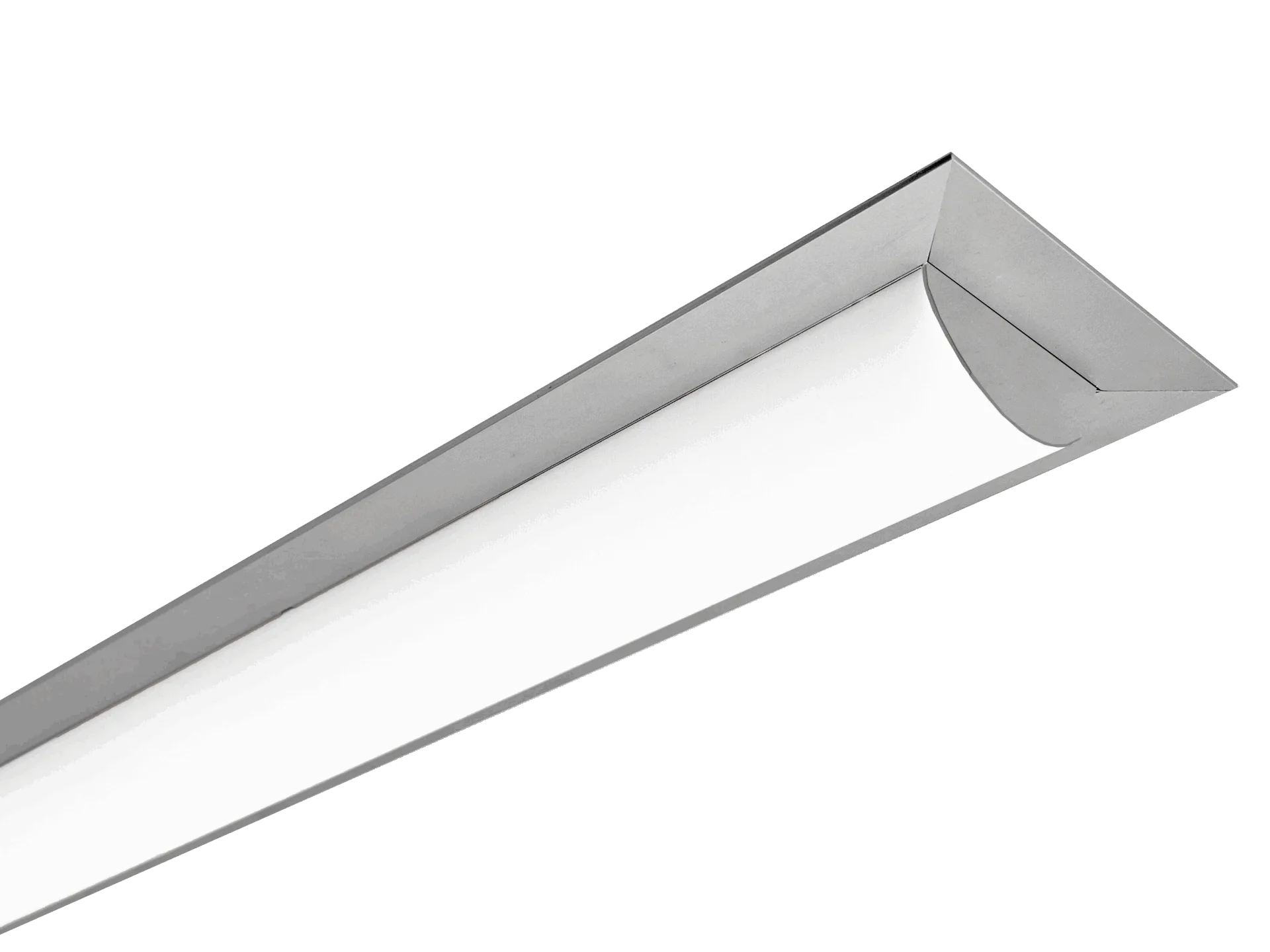

RL
RC2-RL-1

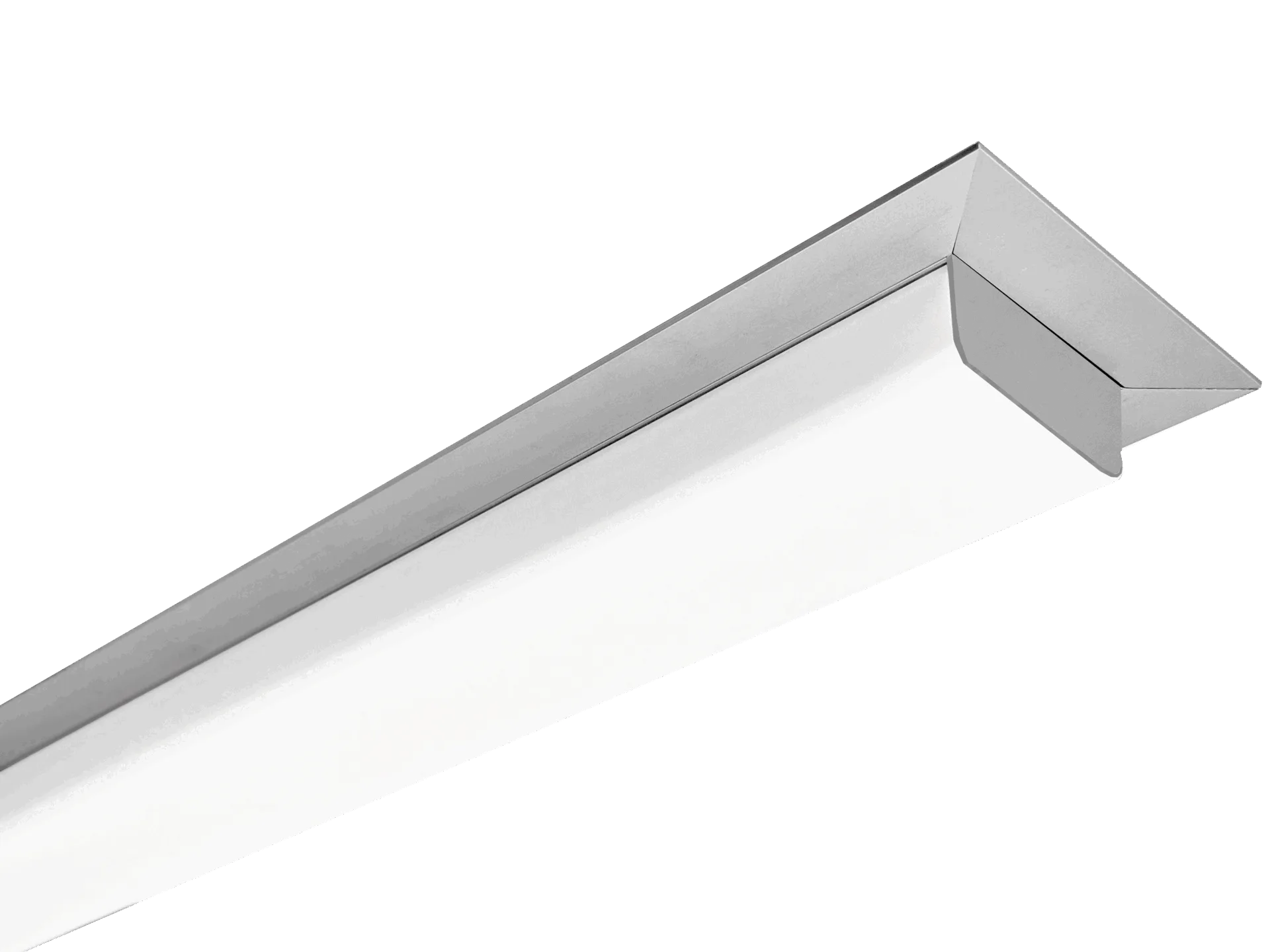

SL
RC2-SL-1
Specification Sheet
Photometry
Installation Guides
Additional Resources
Can you do Custom programming?
Yes! We can provide custom programming—just let us know the required watts per foot or lumens per foot for your project.
Should I choose 2” or 3” wide housing?
Purely aesthetic. Both are identical other than width
What is the life expectancy?
Installations have lasted over 20 years. Lamps typically last 15,000–25,000 hours.
What is the process of submitting a custom design/order?
Custom orders take a bit more time because we need to explore, experiment, and ensure we can successfully bring your idea to life! To get started, you can submit a request or share your concept directly with our quotations department.
Are our fixtures Title 24 compliant?
Yes, our fixtures are designed to comply with Title 24 requirements for nonresidential applications. They achieve the required 80-100 lumens per watt efficiency, integrate with necessary lighting controls, and have been tested under LM79 standards to verify compliance. Certification documents and test reports are available upon request.
The Recessed 3 is a 3-inch wide recessed lighting fixture, also available in lengths up to 12 feet with custom length options. It provides even lighting with a snap-on DR acrylic lens and a range of trim and LED choices, ideal for spaces like healthcare facilities, retail, and more.
